PRIMARY ARM
Locate The Joint.
Drills the aligned dowel holes that establish the joint position.
Doweltron - Panel Joinery Jig
Preorder Now & Get 15% OFF!
Precision dowel and Minifix joinery—aligned from face to edge with one rotating jig.
DESCRIPTIONS

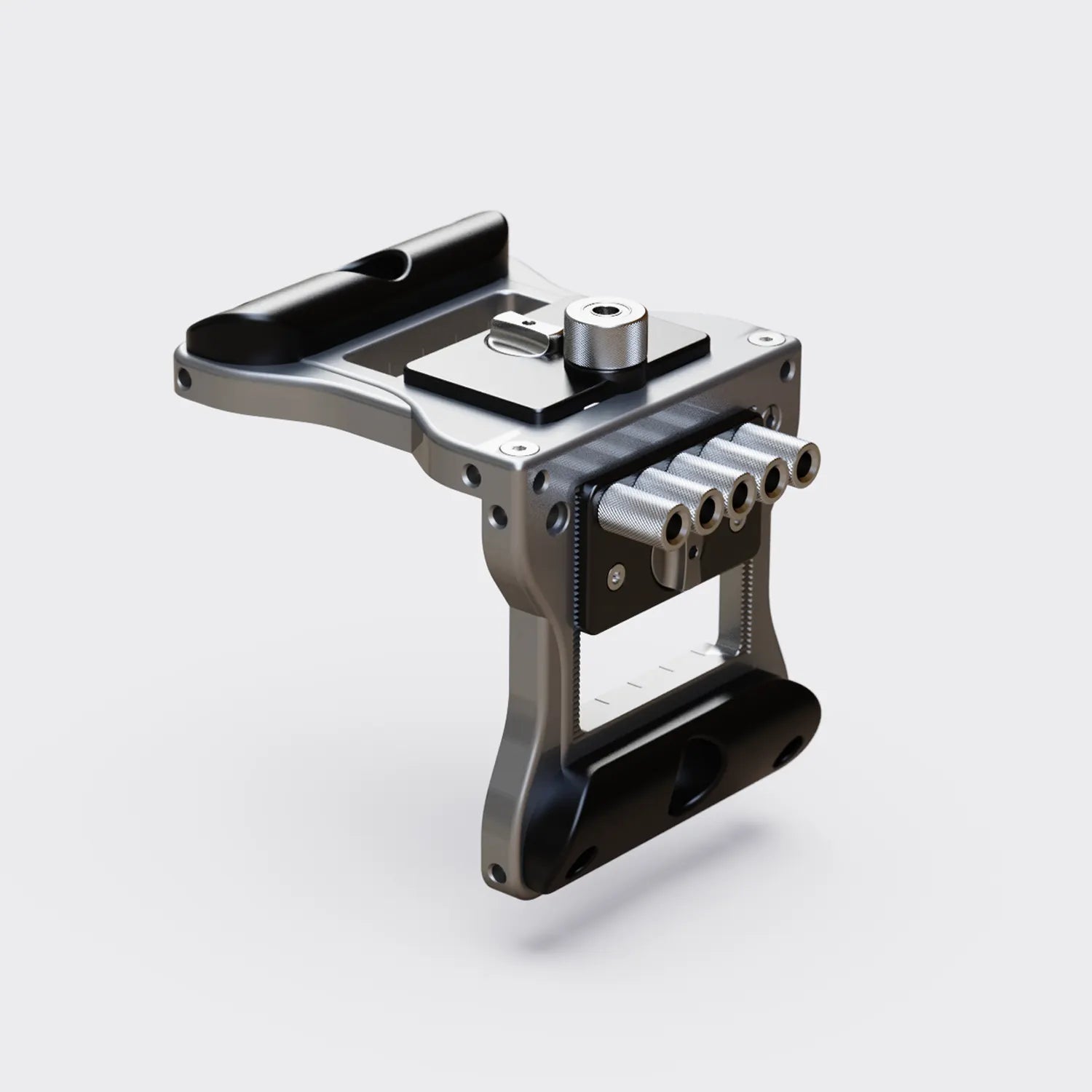

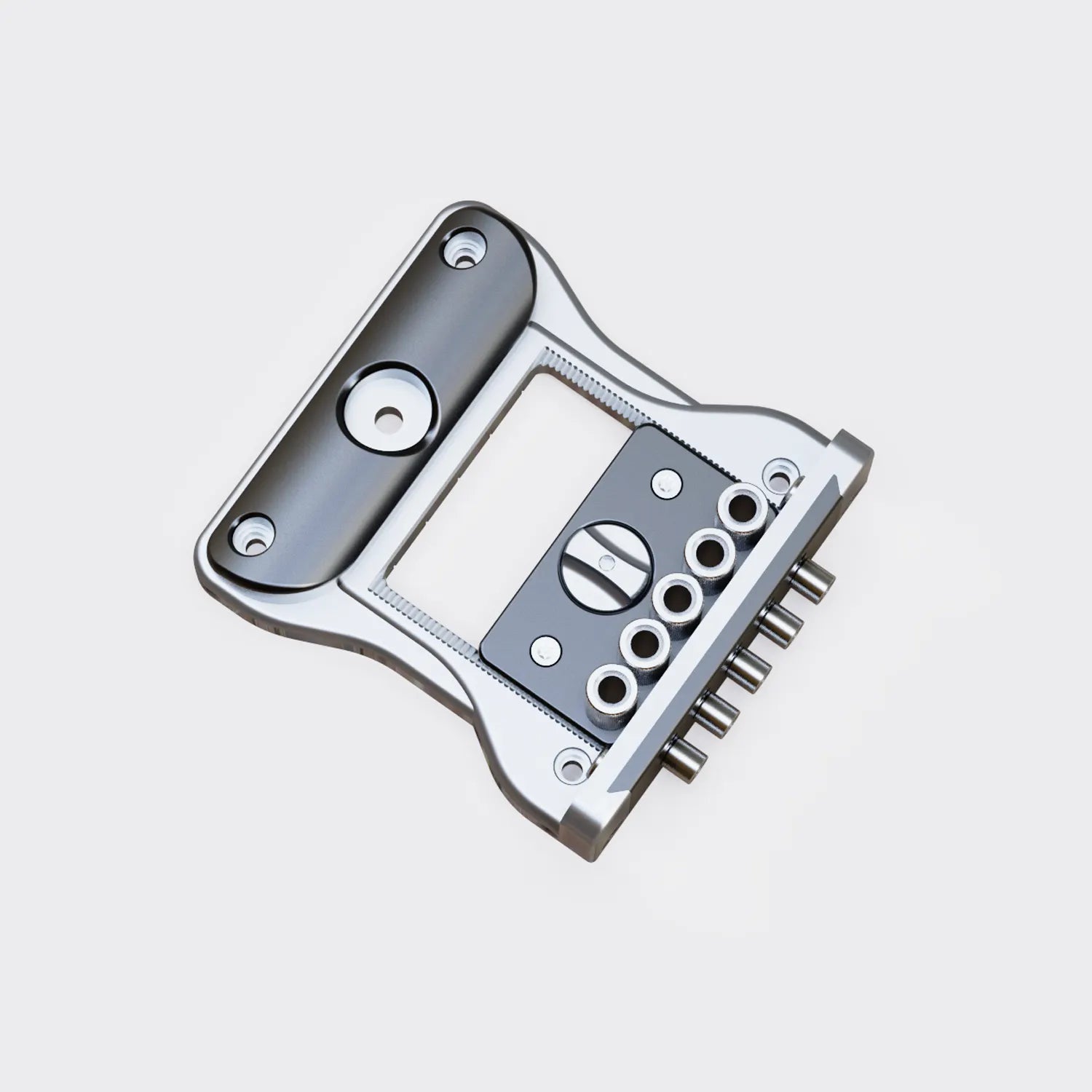

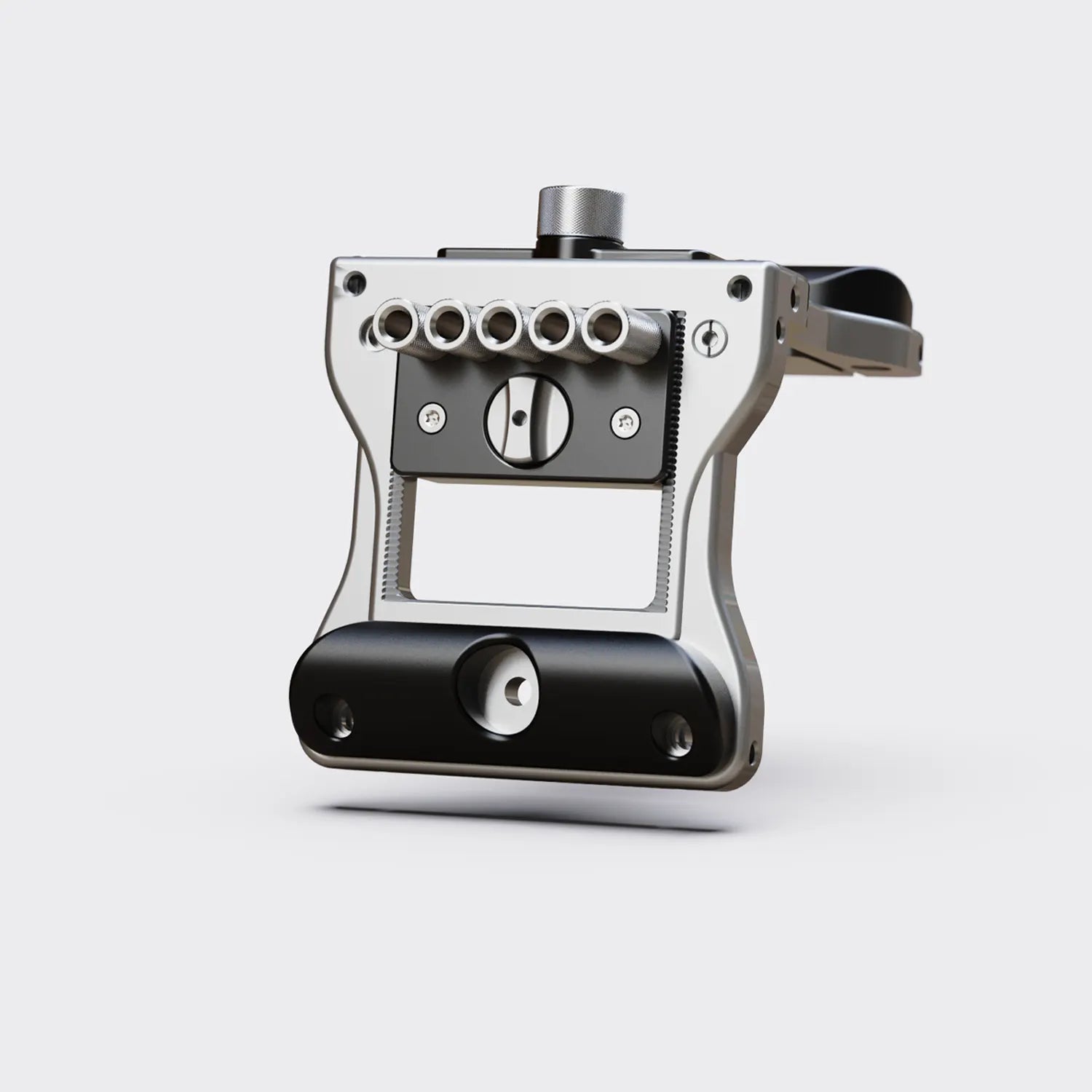

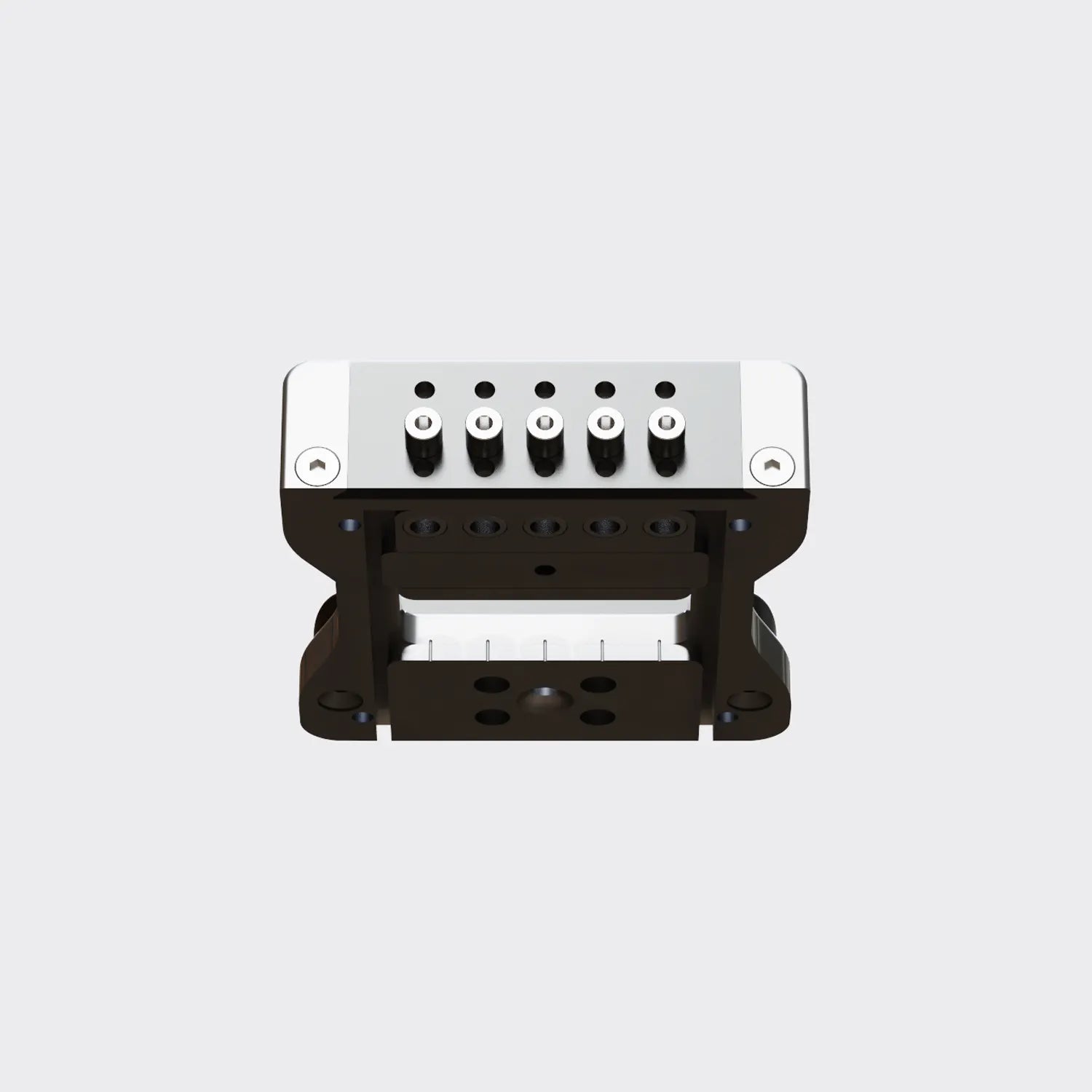

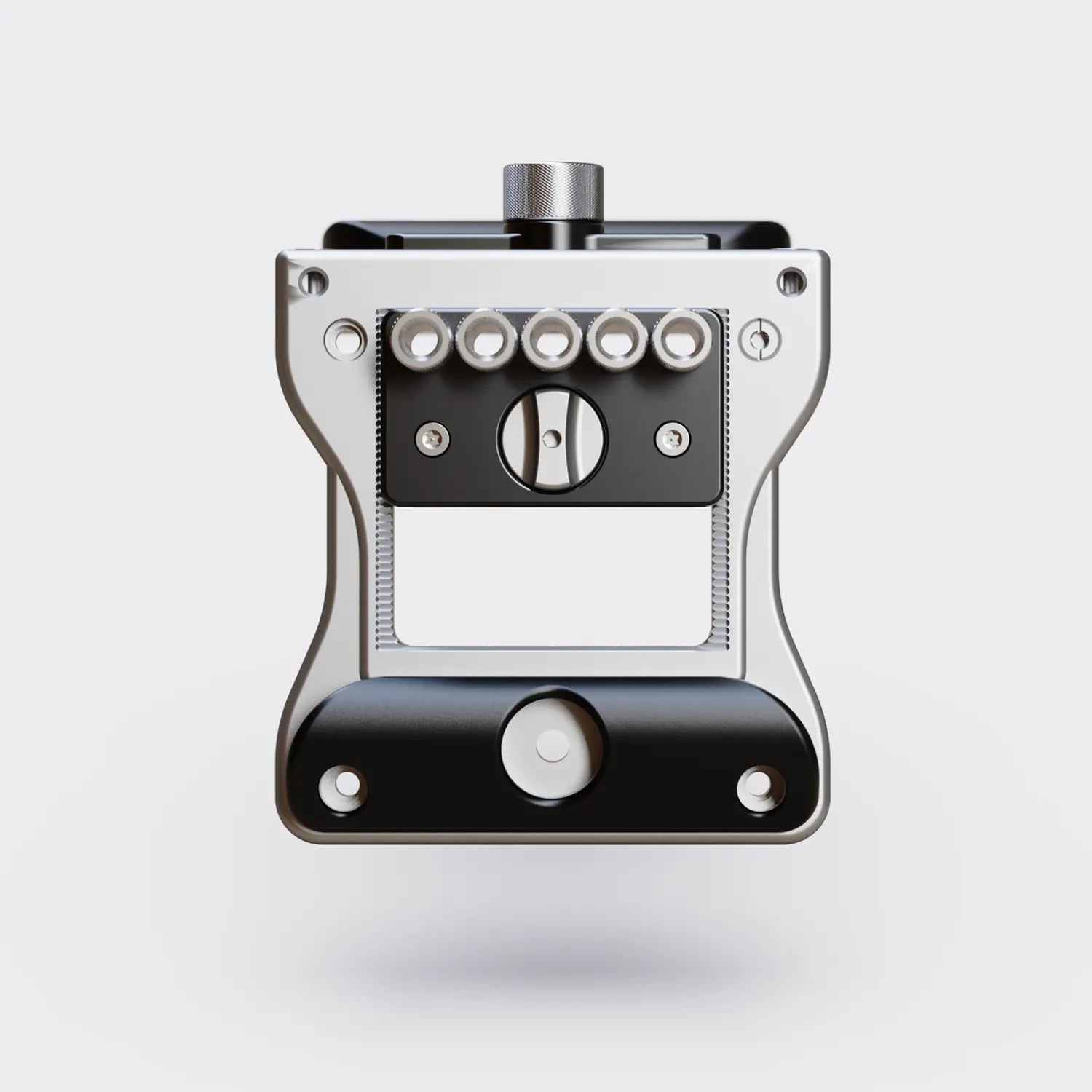

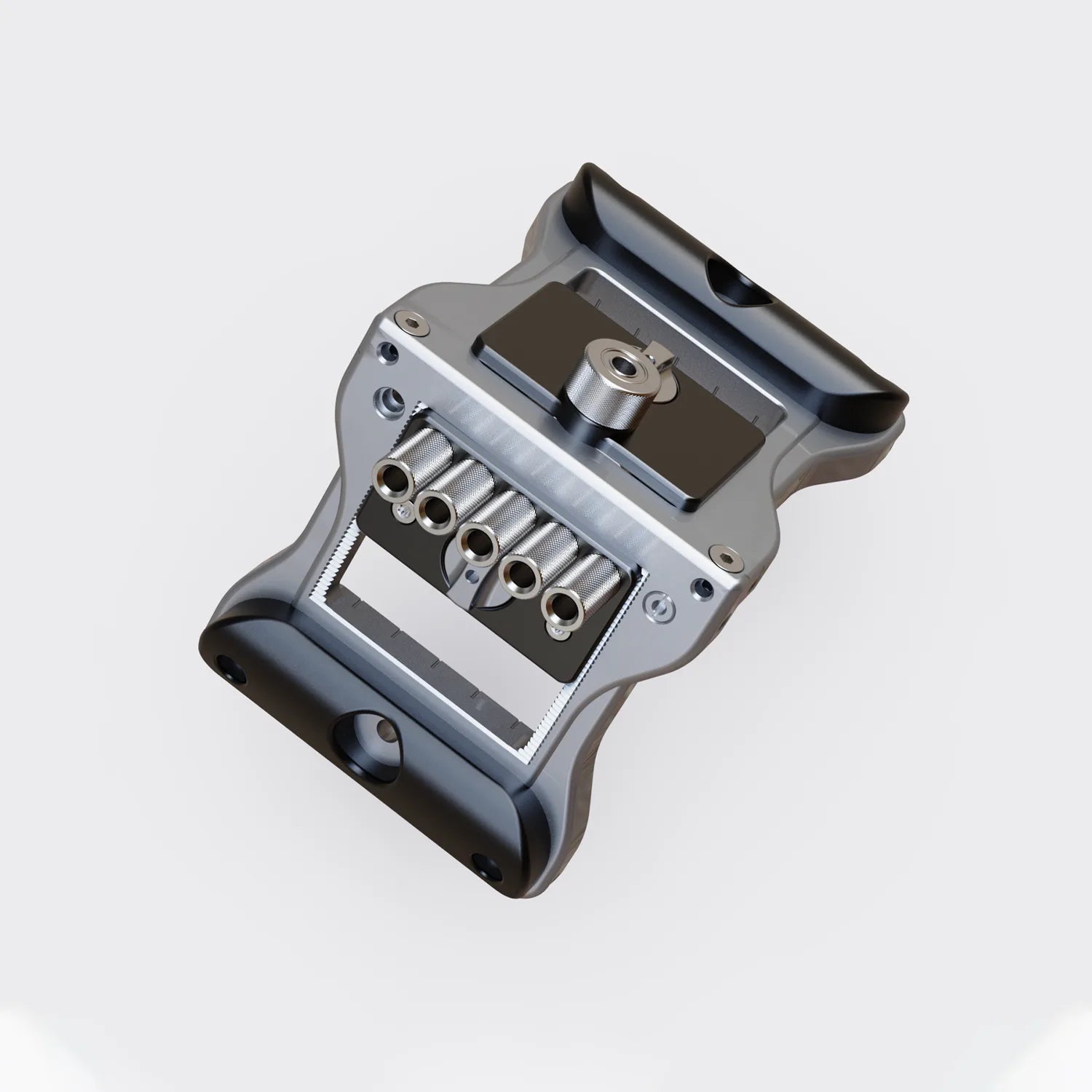

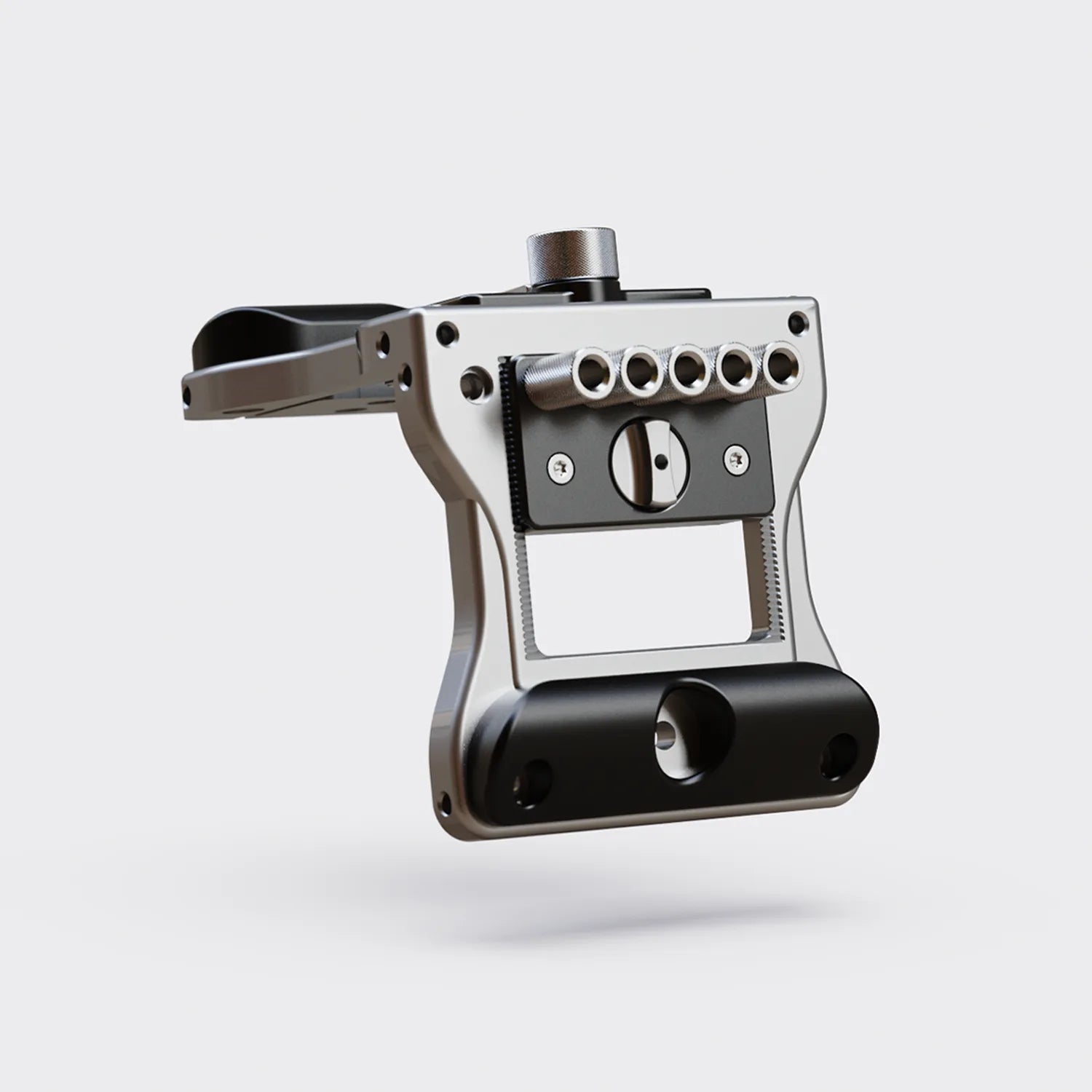

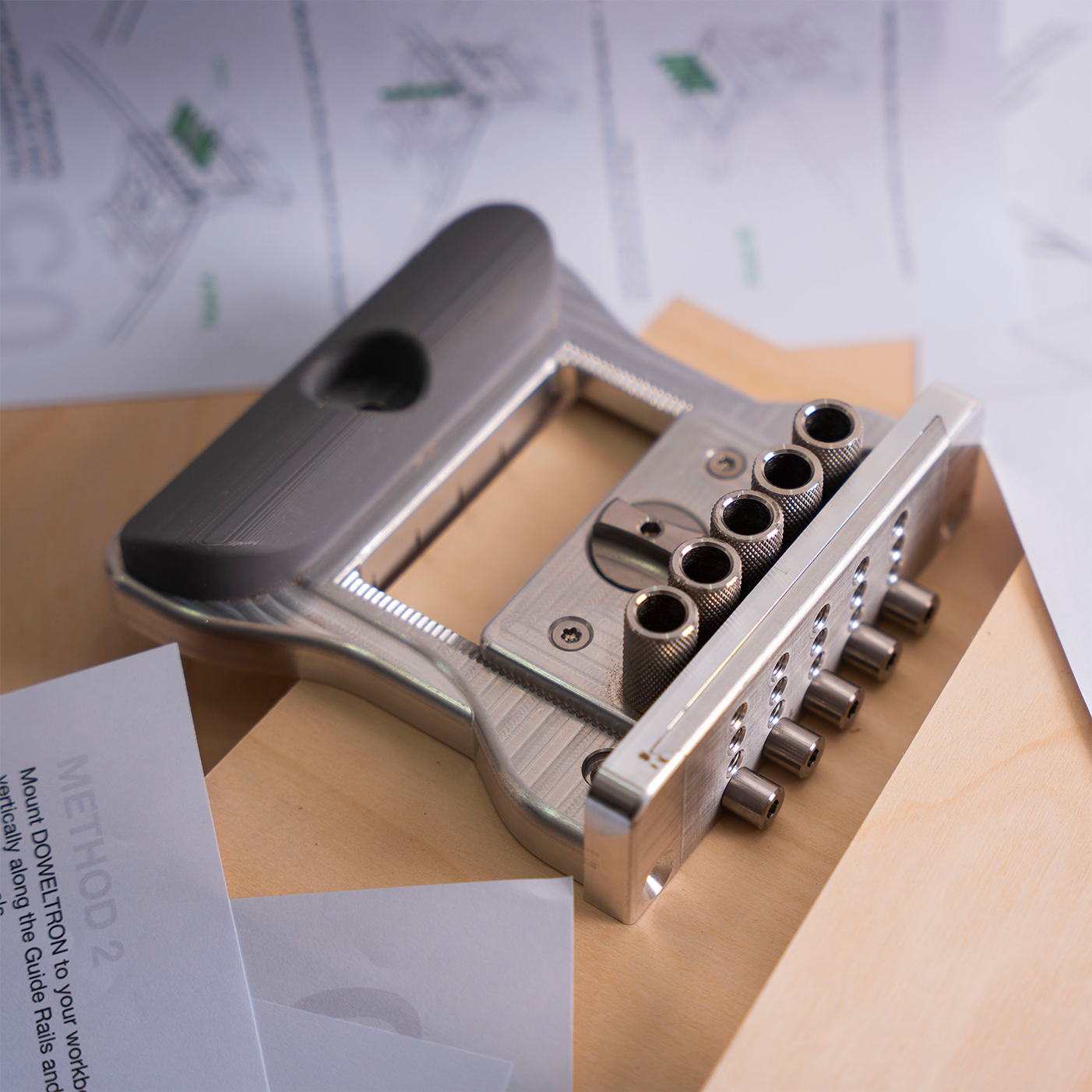

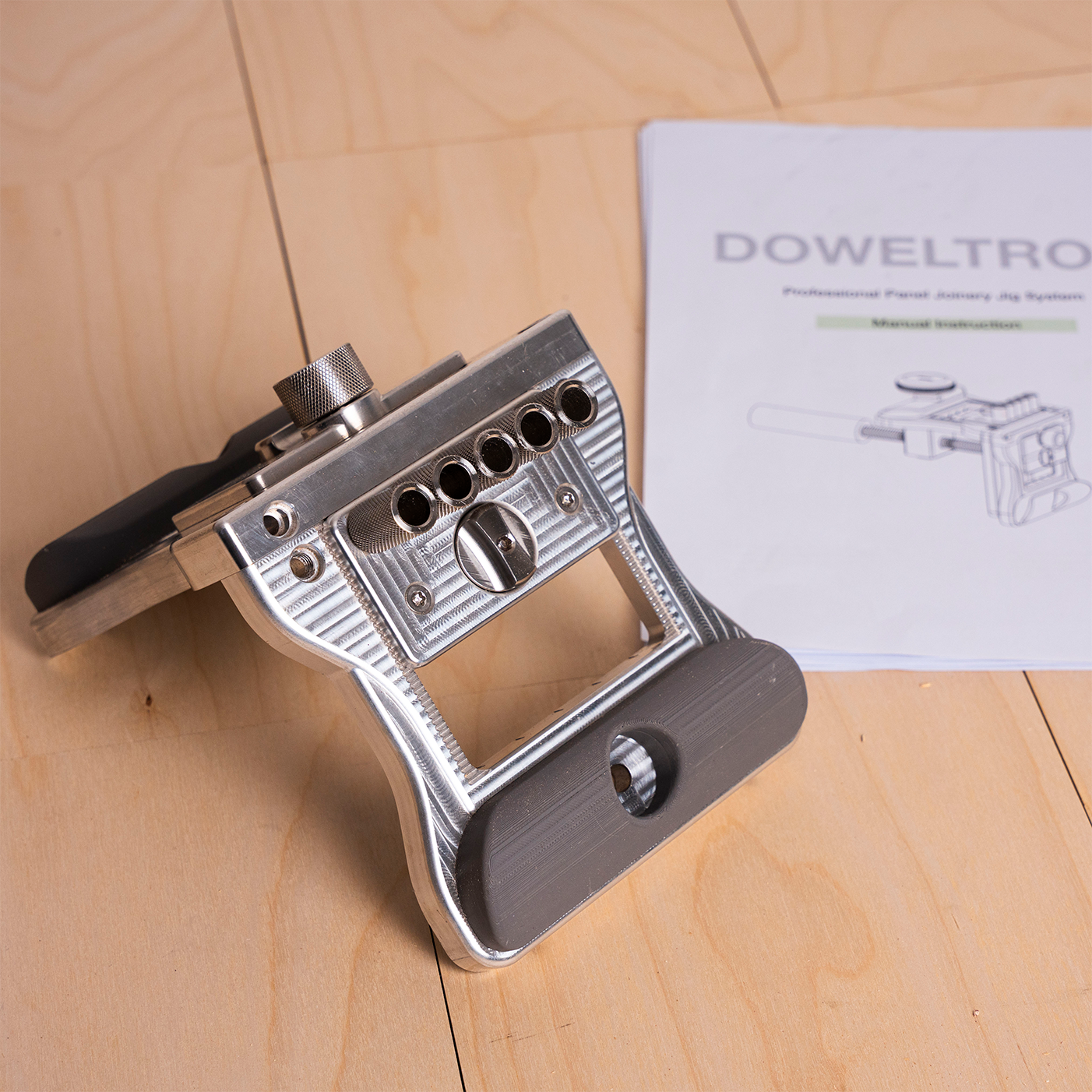

DOWELTRON — Precision Dowel Jig System
Dowel jig for 6mm, 8mm, and 10mm dowels, built from hard-anodized aluminum with 304 stainless steel drilling guides for long-term durability and wear resistance. With 16mm hole spacing built for the 32mm system and added support for Minifix joinery, it also features a new rotating mechanism that switches drilling direction between face and edge for seamless joint connections, plus a stationary option for locked, repeatable setups — built for precision in cabinetry and furniture making.
- Drills 6mm, 8mm, and 10mm dowel holes with one jig
- 16mm hole spacing — compatible with the 32mm system standard
- Supports Minifix (cam-lock) joinery for knock-down furniture assembly
- New rotating mechanism switches drilling direction between face and edge, enabling face-to-edge joint connections
- Stationary assembly option for locked, repeatable high-volume drilling
- Ideal for cabinetry, shelving, and modern furniture construction
Manual
Doweltron - Panel Joinery Jig
Sale price$299.00
Regular price$350.00
Choose options
Doweltron - Panel Joinery Jig
Sale price$299.00
Regular price$350.00
Doweltron / Precision dowel jig system
One Reference.
Matching Holes.
Drill face and edge holes from the same setup. Rotate the jig, keep the offset, and bring cabinet parts together flush.

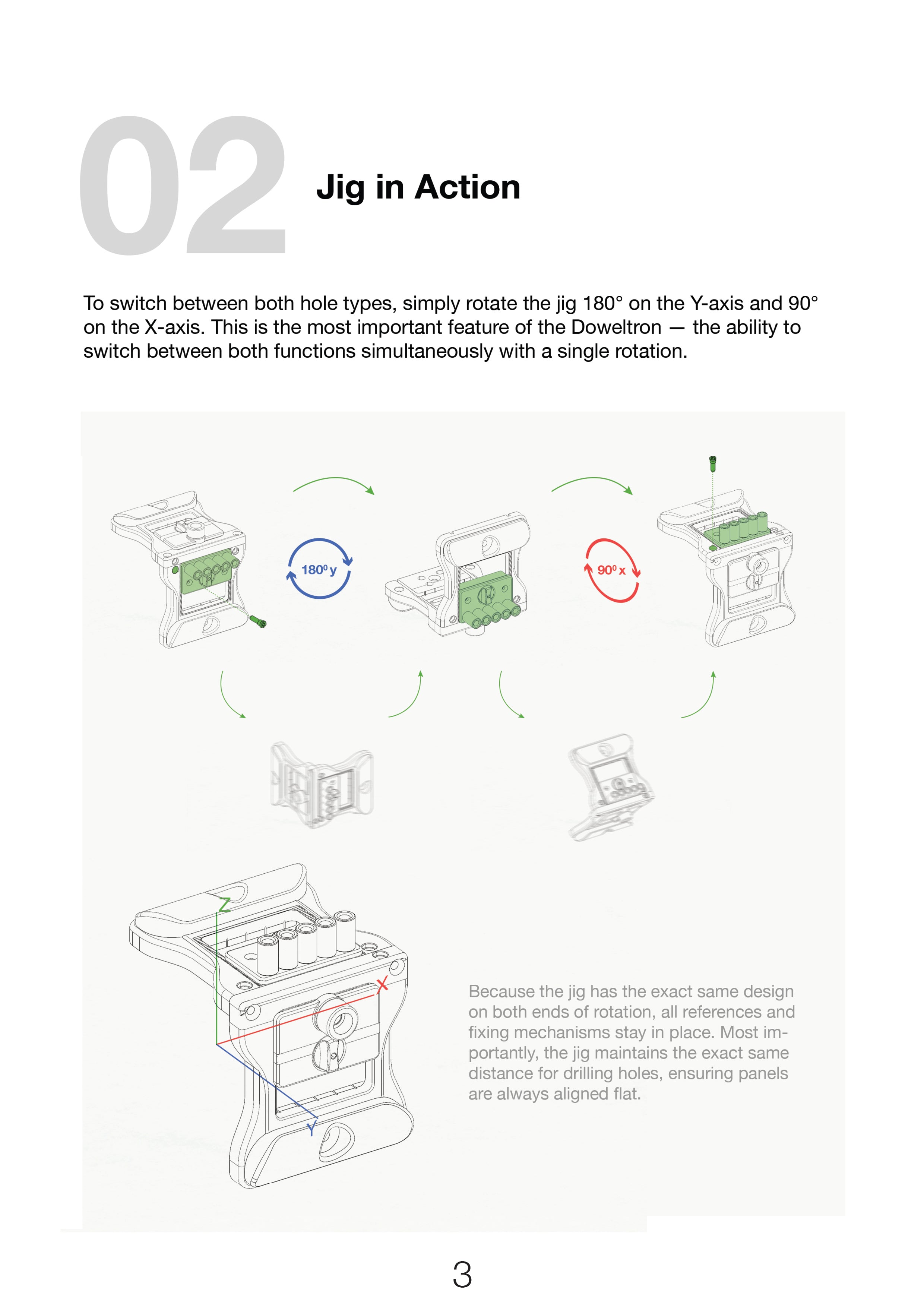

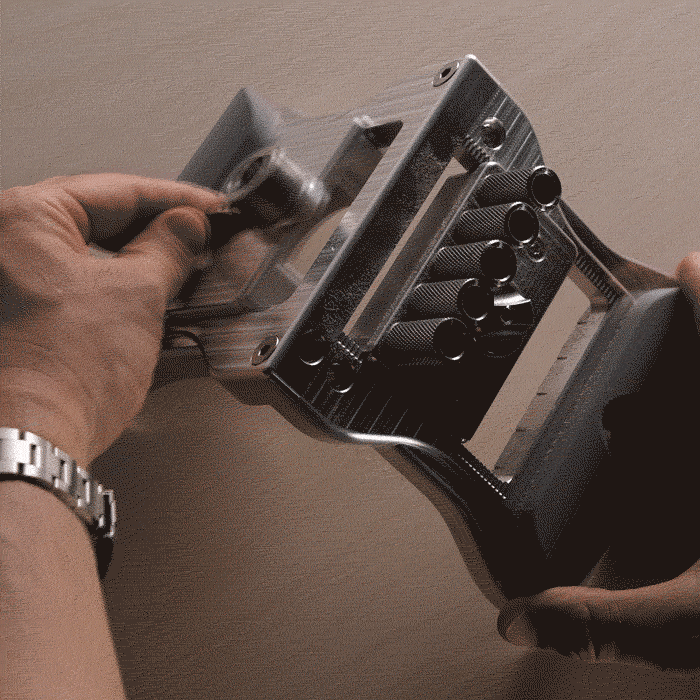

The defining move

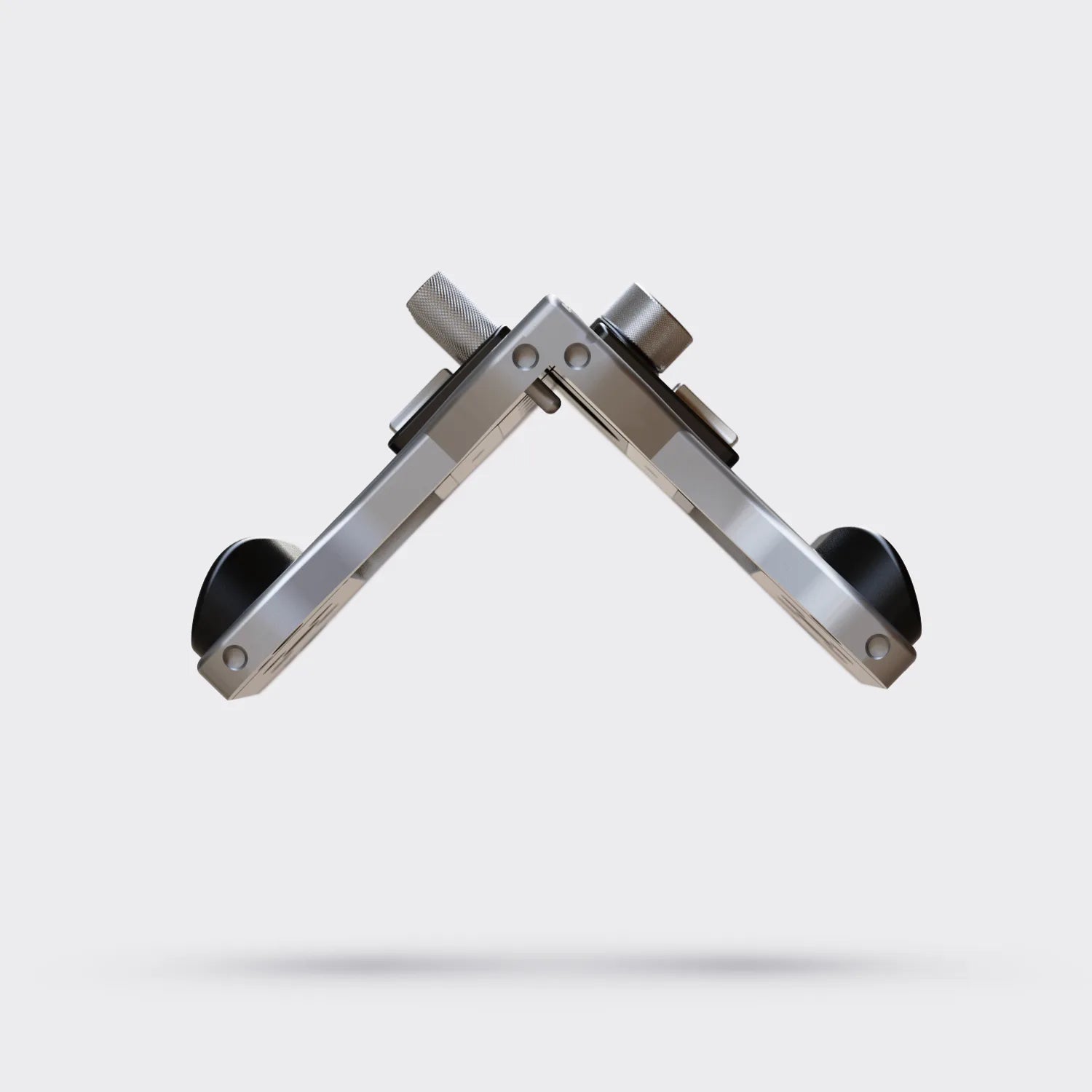

Rotate The Jig.
Keep The Reference.
Turn Doweltron 180° on one axis and 90° on the other to switch between face and edge drilling—without rebuilding the setup.
FACE HOLES180° / Y
Drill the broad panel face for matching joints and hardware.
EDGE HOLES90° / X
Drill the narrow panel edge at the identical offset.
One Jig / Repeatable Standards
Three Dowel Sizes.
One Indexed Setup.
6 / 8 / 106 / 8 / 10 DOWEL SIZES
16 MMHOLE SPACING / 32 MM SYSTEM

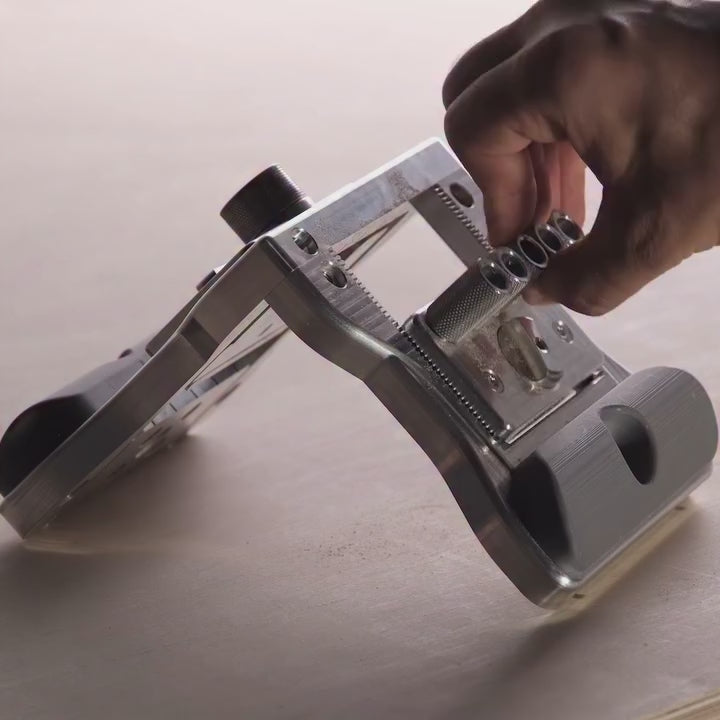

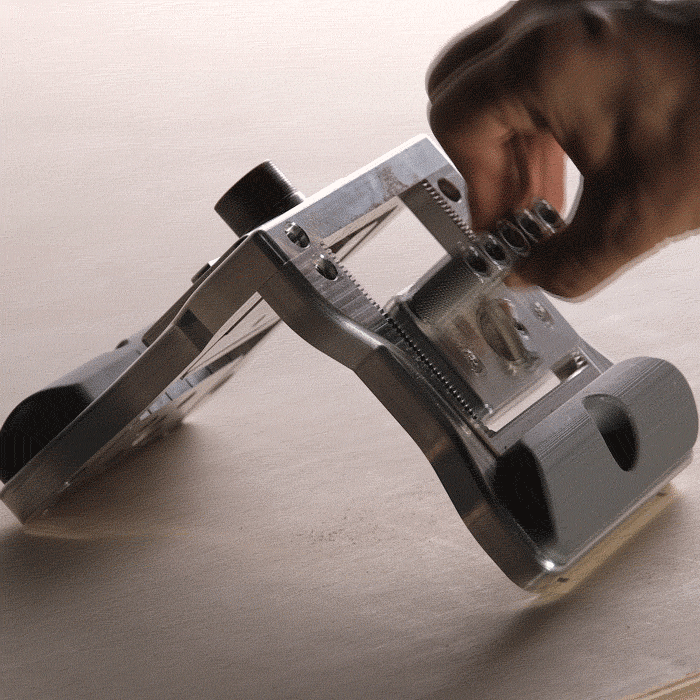

2 MMINDEX RAIL CLICKS

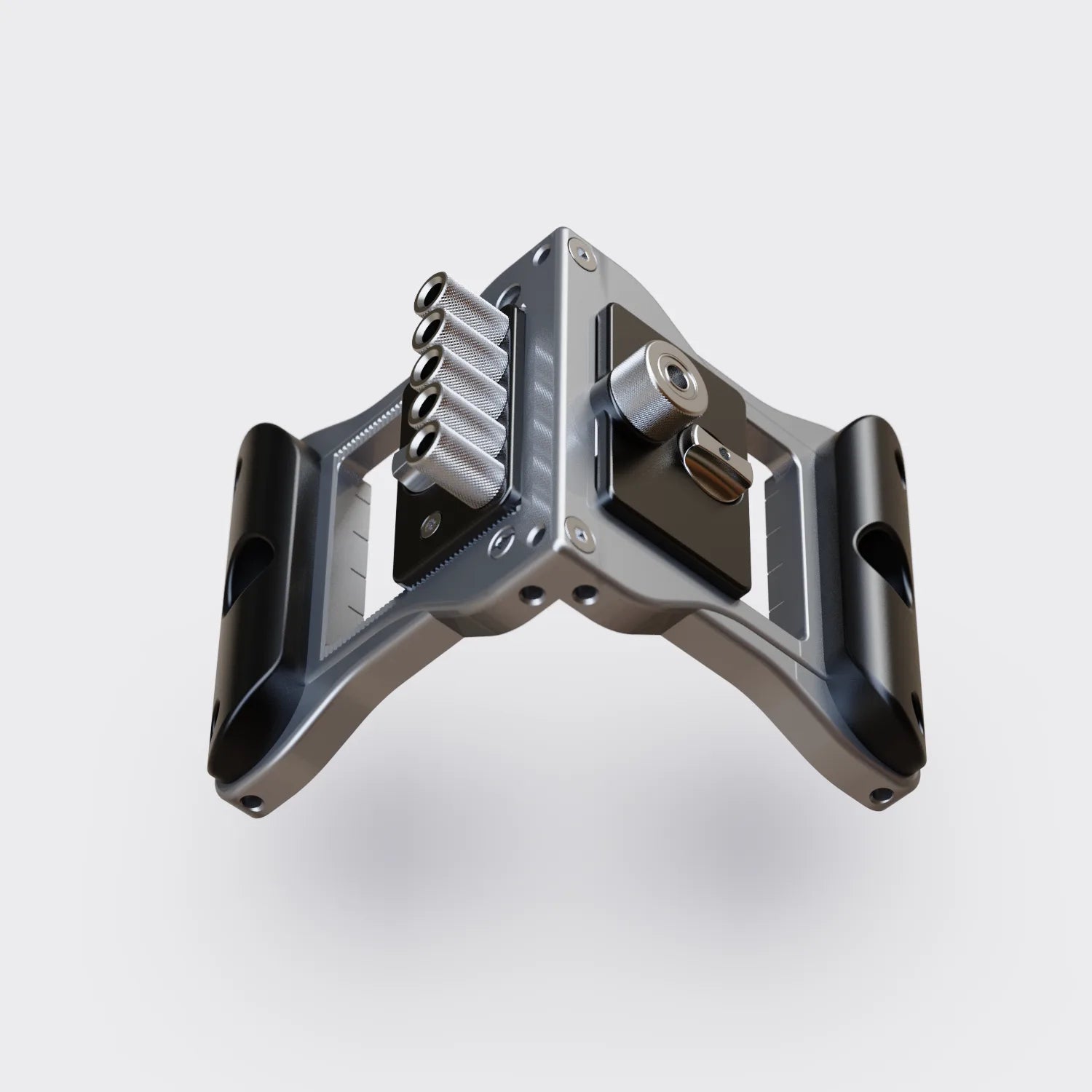

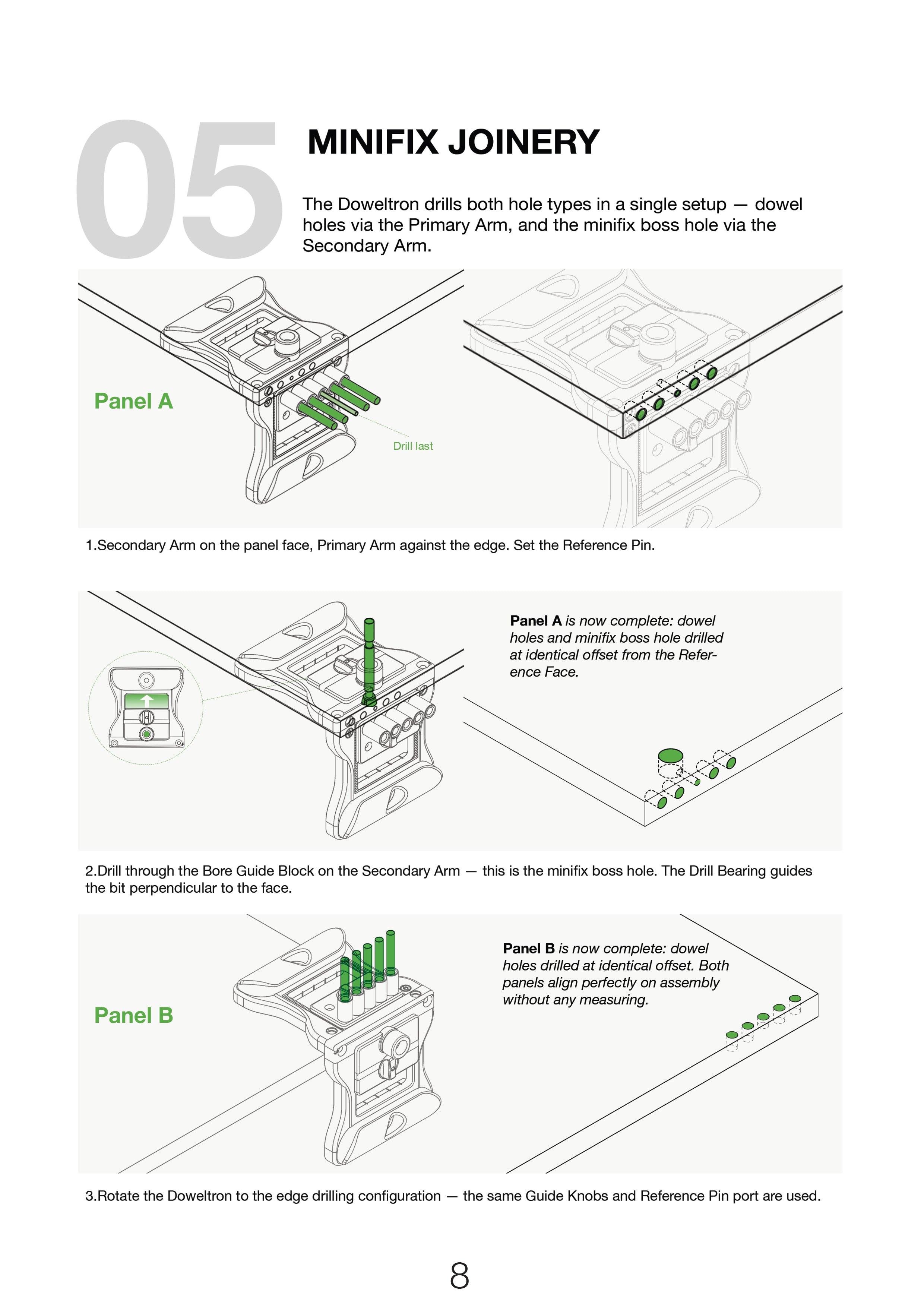

One system / Two connections
Dowels Locate.
Minifix Locks.
Use the primary arm for dowel holes and the secondary arm for the Minifix boss hole. Both stay tied to the same reference.
SECONDARY ARM
Lock The Joint.
Drills the perpendicular Minifix boss hole for cam-lock assembly.

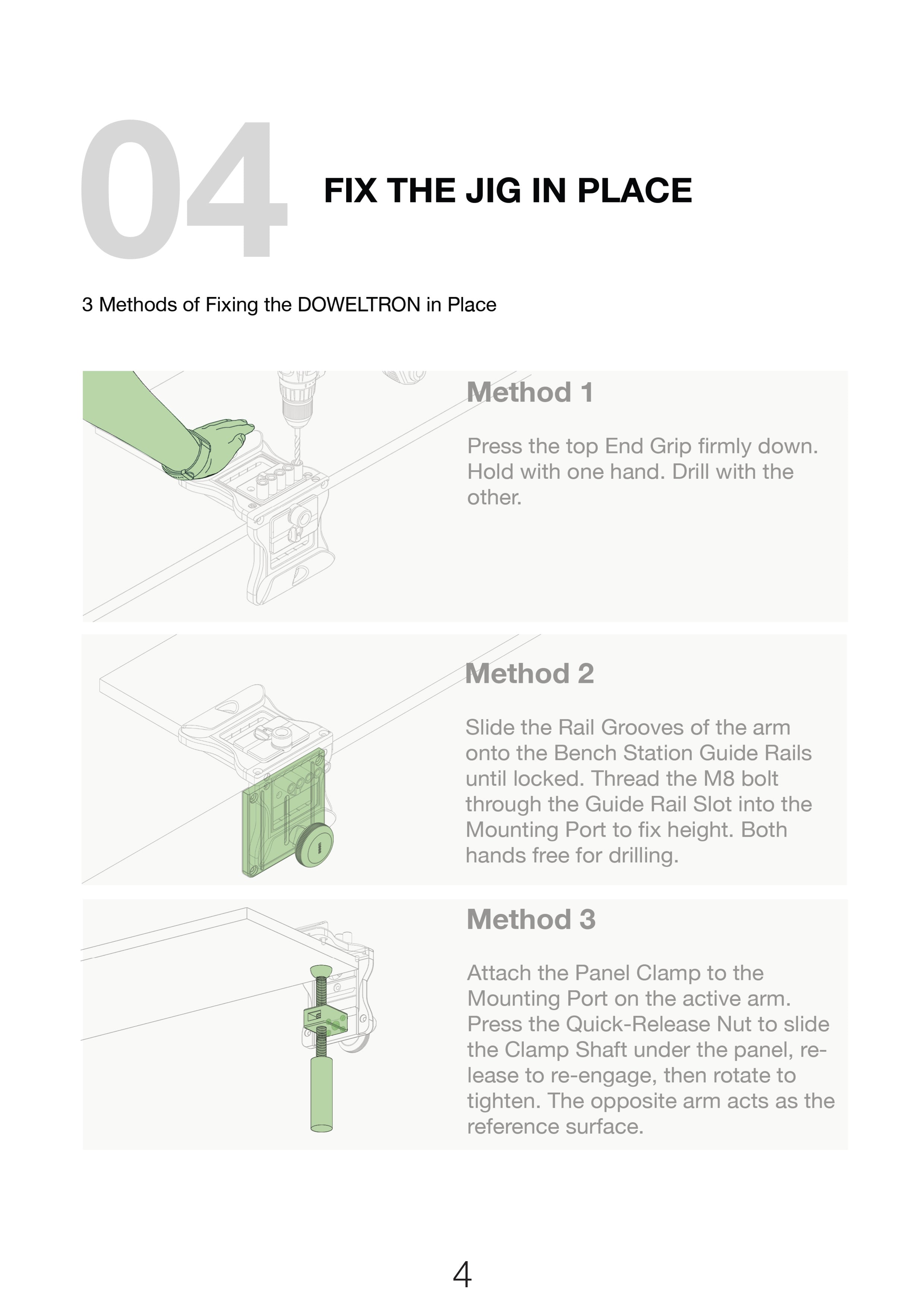

Three ways to work
Hold It. Mount It.
Bring It To The Panel.
HANDHELD
Press the end grip down for quick one-off work.

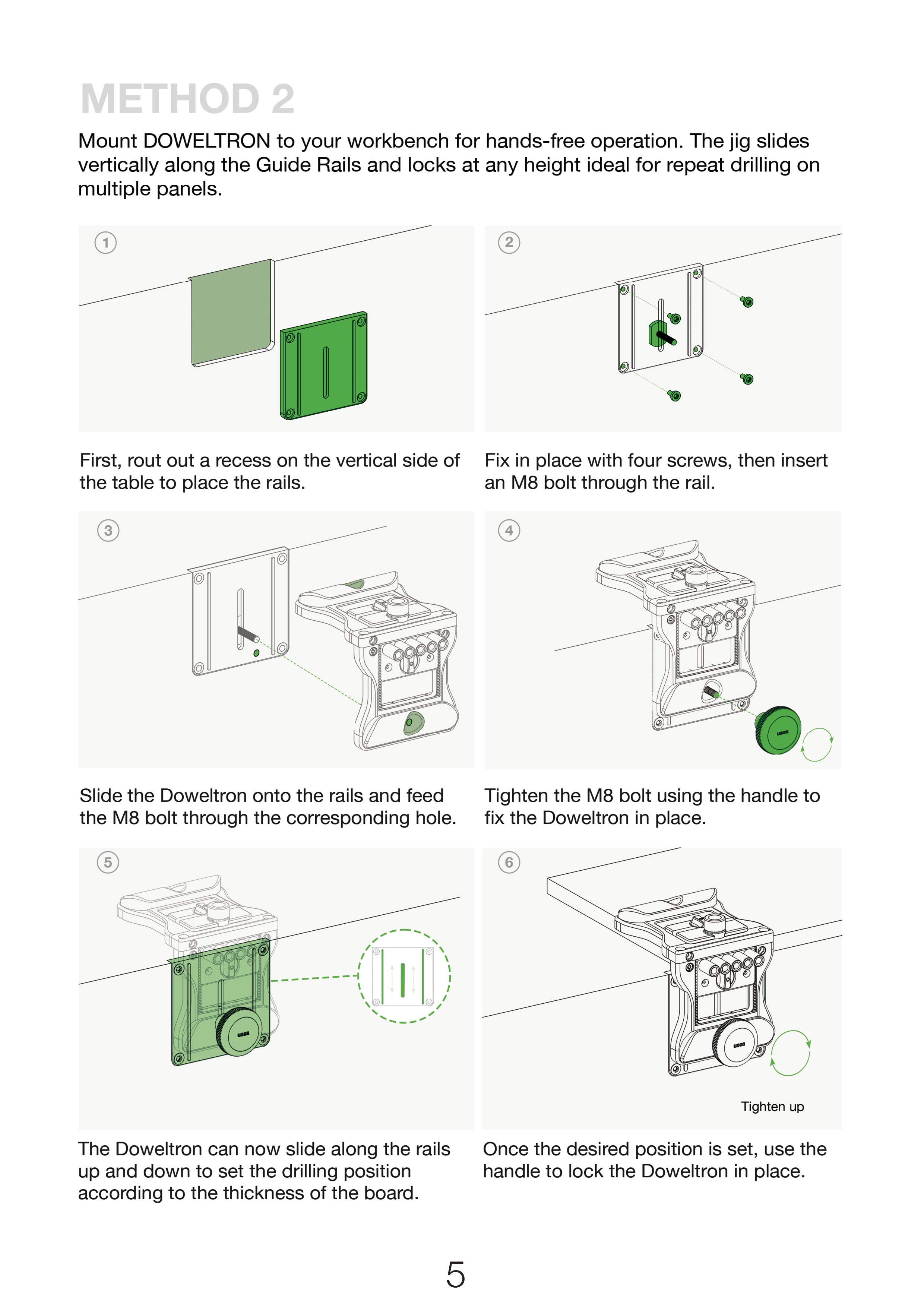

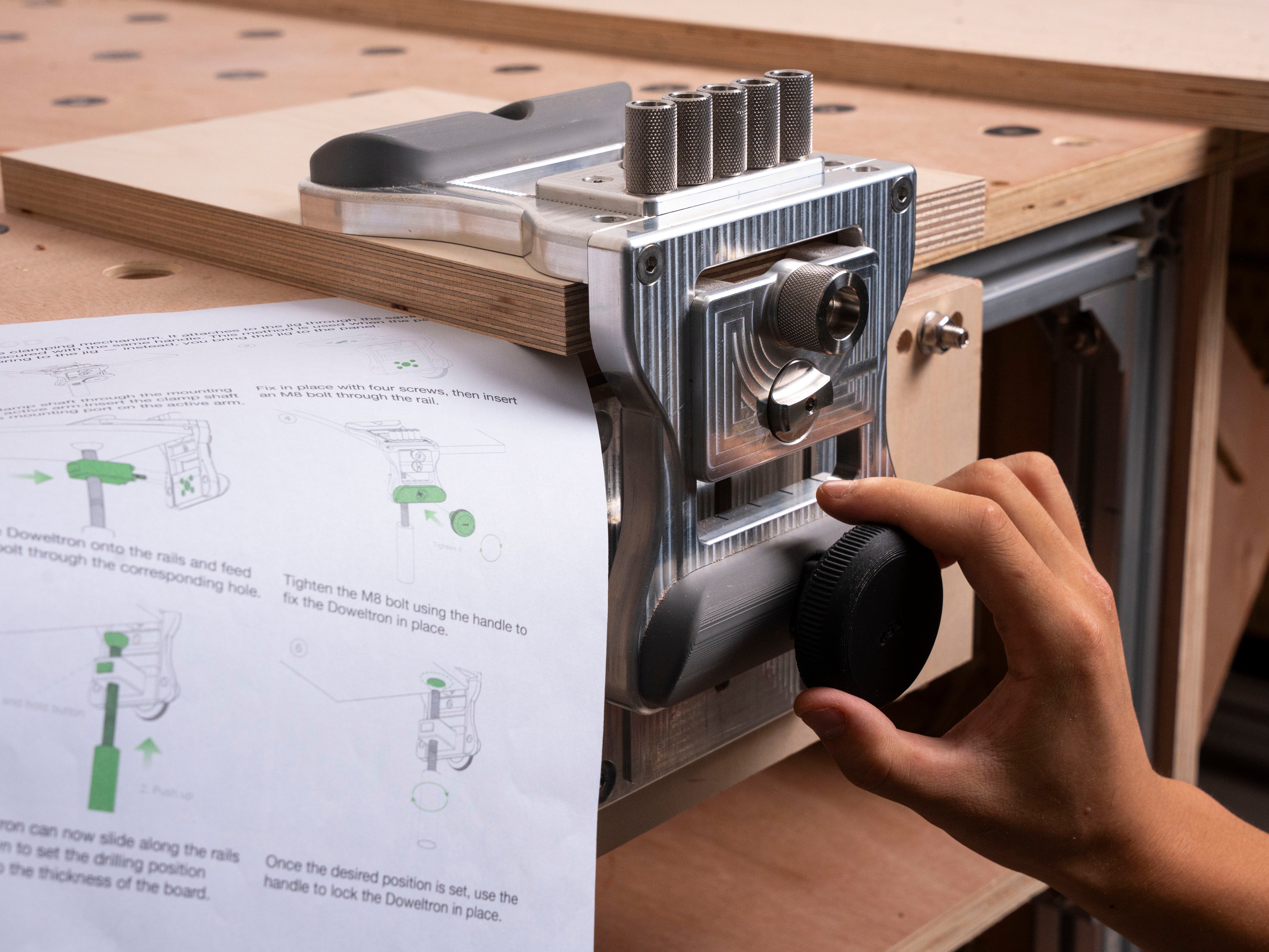

BENCH STATION
Lock the jig to guide rails for repeat drilling.

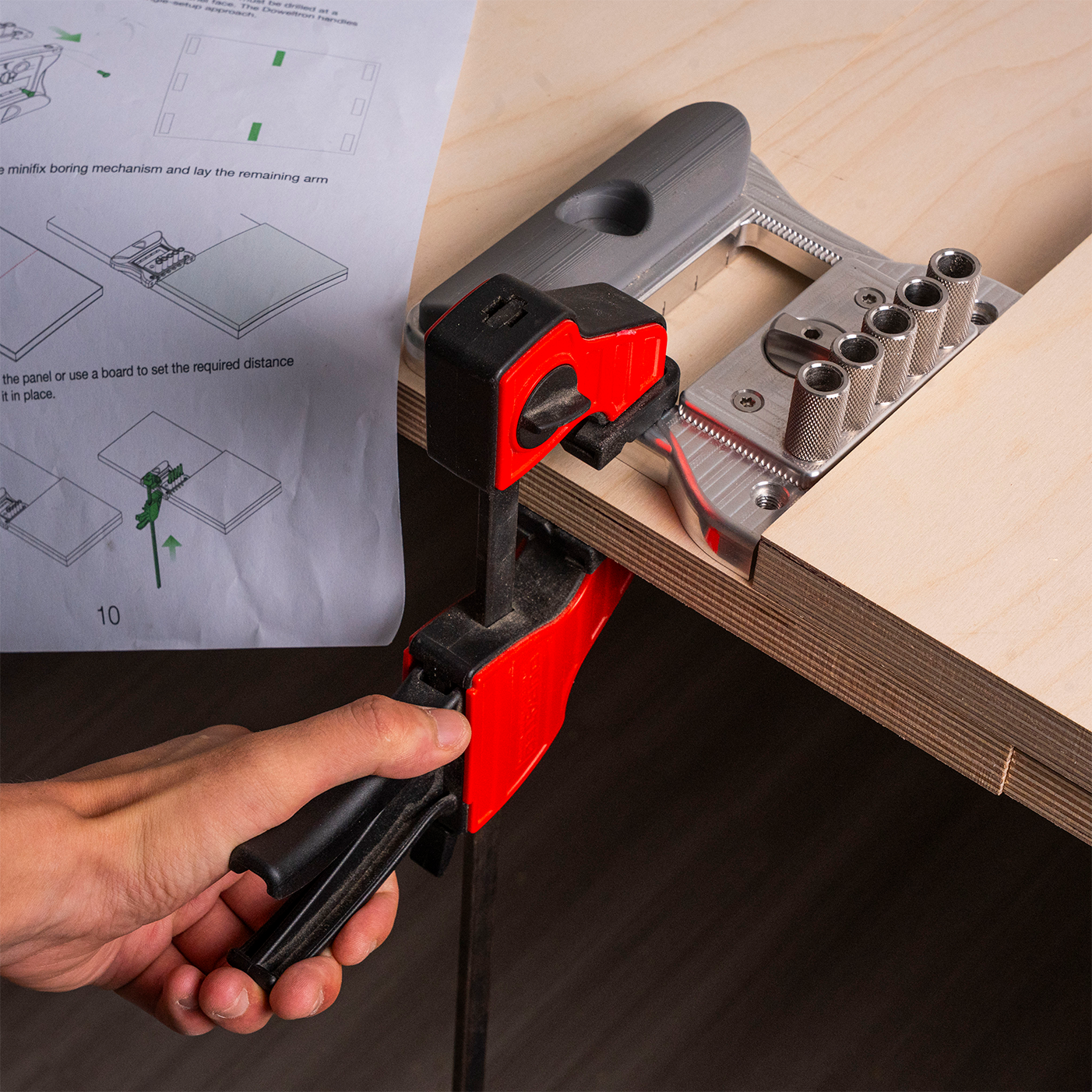

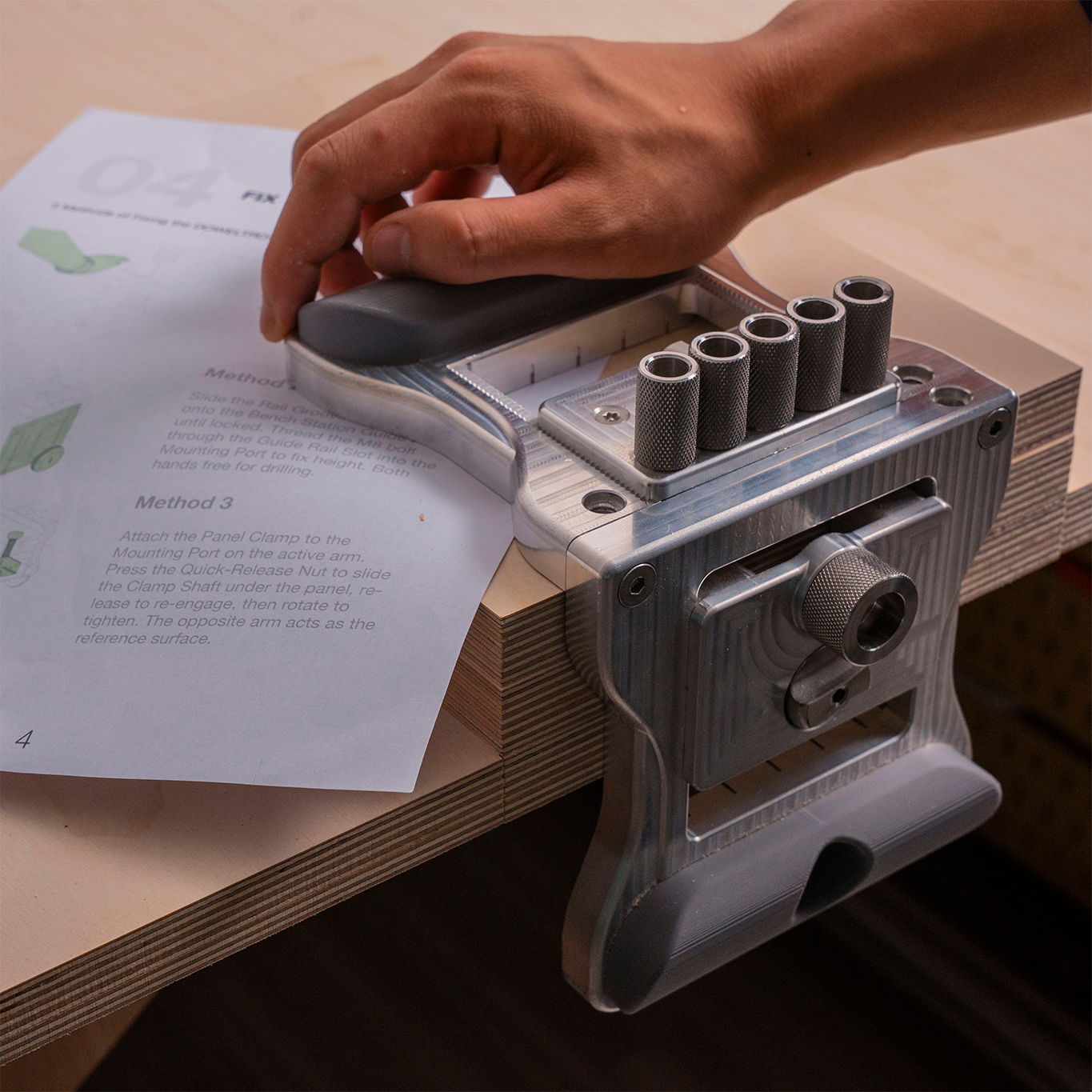

PANEL CLAMP
Take the jig to large workpieces.

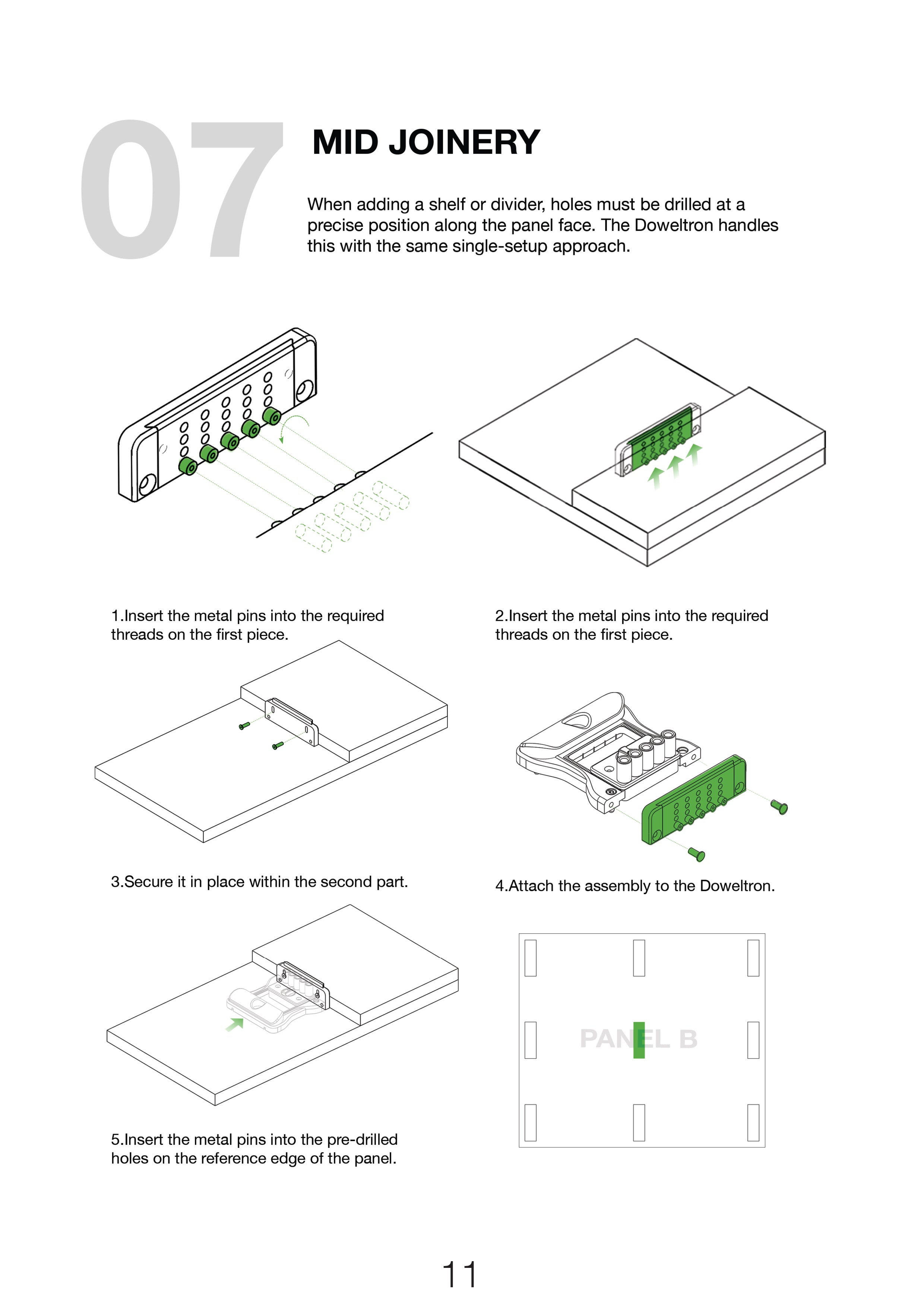

Cabinets / Shelves / Dividers
Edge Joints And
Mid-Panel Joinery.
Work from an edge, a drawn reference line, or a positioning board to place shelves and dividers exactly where the design calls for them.
Hard-anodized aluminum / 304 stainless steel guides
Build The Joint
From One Reference.
Designed for accurate cabinet, shelving and modern furniture construction.
